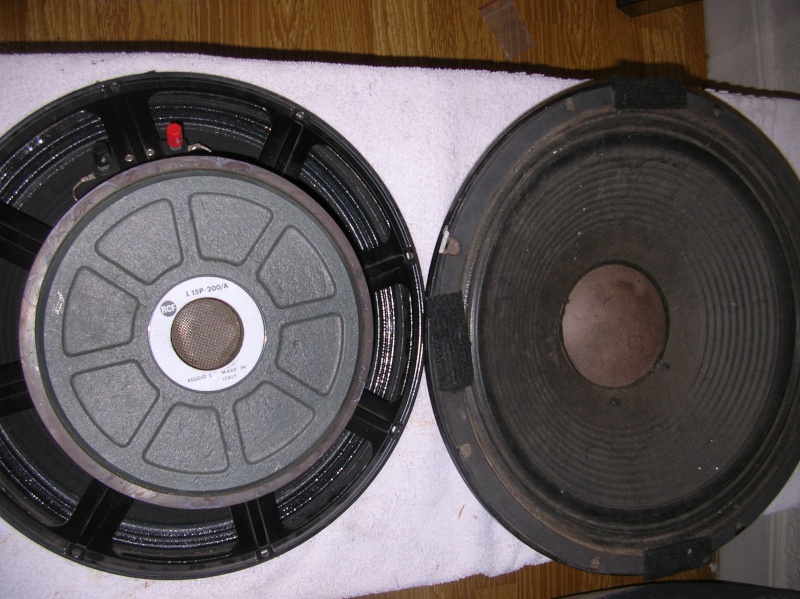

C MON POTE QUI LES VEND A RÉPARER 2 HP RCF L15P 200 AK8 PRIX MP
GENERAL SPECIFICATION
Nominal Diameter: 380 / 15 mm/inch
Rated Impedance: 8 Ω
Program Power: 1600 Watts AES
Power handling capacity: 800 Watts AES
Sensitivity: 95 dB
Frequency Range: 35 Hz ÷ 1000 Hz
Effective Piston Diameter: 325 / 12.8 mm/inch
Max Excursion Before Damage (peak to peak): 36 / 1.4 mm/inch
Minimum Impedance: 7.9 Ω
Voice Coil Diameter: 100 / 4 mm/inch
Voice Coil Material: Copper
Voice Coil Winding Depth: 24 / 0.9 mm/inch
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 9 / 0.35 mm/inch
Cone Material: No pressed pulp
Cone Design: Straight
Surround Material: Polycotton
Surround Design: Triple roll
THIELE SMALL PARAMETERS
Resonance frequency: 38 Hz
DC resistance: 5.9 Ω
Mechanical factor: 6.8
Electrical factor: 0.38
Total factor: 0.35
BL Factor: 21.2 T · m
Effective Moving Mass: 121 gr
Equivalent Cas air load: 139 liters
Effettive piston area: 0.083 m²
Max. linear excursion (mathematical): 9.8 mm
Voice - coil inductance @ 1KHz: 2.2 mH
HP A RÉPARER PRIX PAR MP
